with RUIXU Battery

Not Just Battery
It’s a Different Power Experience
RUIXU smart bluetooth battery-Purpose built, for caravan, RV and marine applications, it is safe, easily to install and parallel for more capacity and comes with. you can do real-time access to battery operating status using a Bluetooth® App.
Free Ground Shipping
(Continental United States only)
5 Years Warranty
30-day No-hassle Returns
Respond within 24 Hours
Why Choose LiFePO4?
Lithium iron phosphate batteries (LiFePO4 or LFP) offer lots of benefits compared to lead-acid batteries and other lithium batteries. Longer life span, no maintenance, extremely safe, light-weight, improved discharge and charge efficiency, just to name a few. LiFePO4 batteries are not the cheapest in the market, but due to a long life span and zero maintenance, it’s the best investment you can make over time.

Smart Bluetooth LiFePO4 Battery
Bluetooth App Control
Built-in bluetooth function allows you to read the battery status any time.
Smart BMS
Low temperature cut-off protection
Stainless Steel Case
No rusting problem,Patent Designed Construction.

Certification
Material Safety Data Sheet
UN 38.3 Safety Test
UL1973 brand new Grade A+ prismatic cell.
Flexible
Works in 12, 24 or 48V configurations Connect in parallel to get 200, 300 or400Ah.

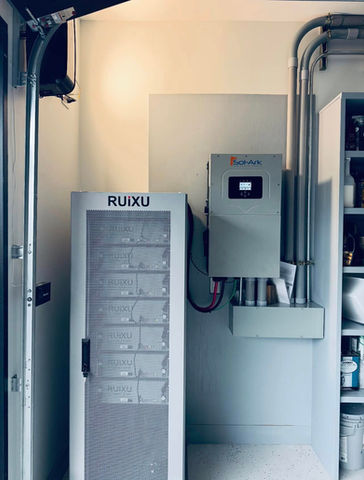

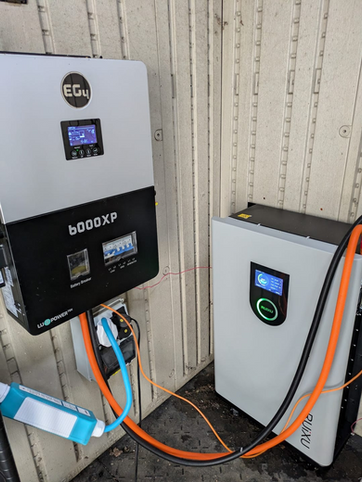

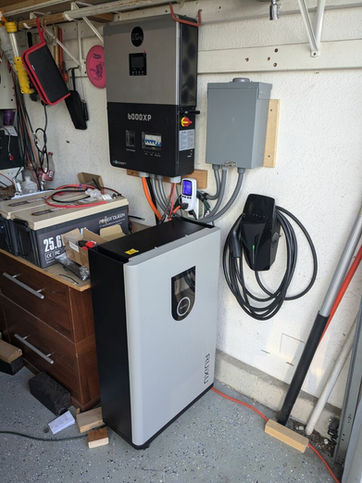

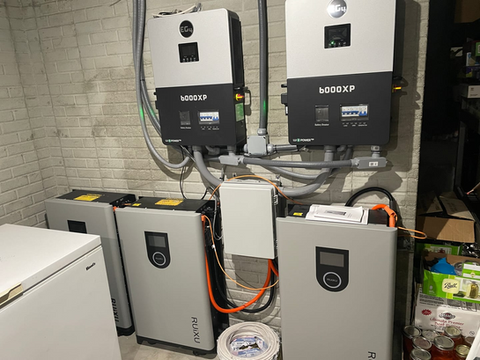

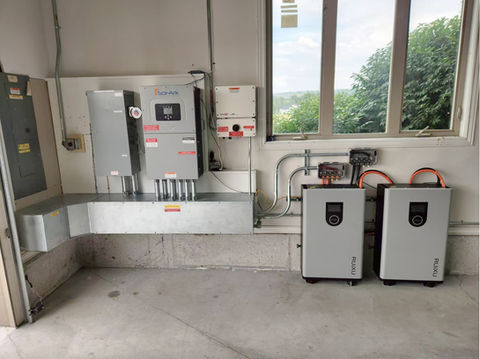

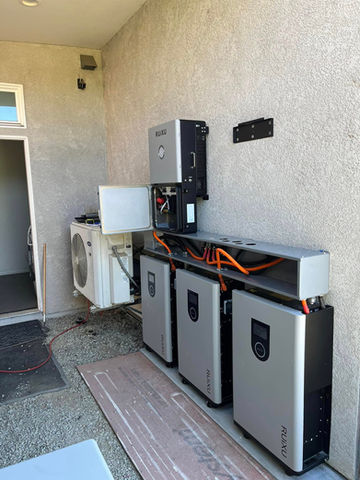

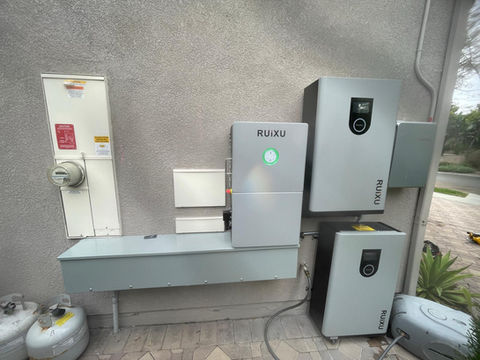

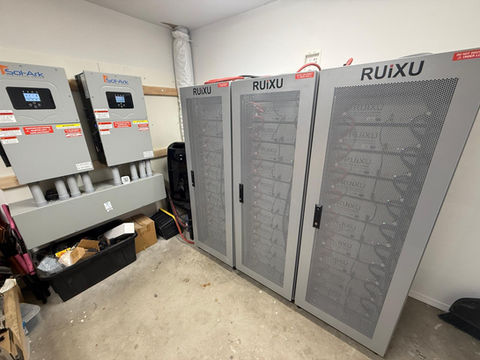

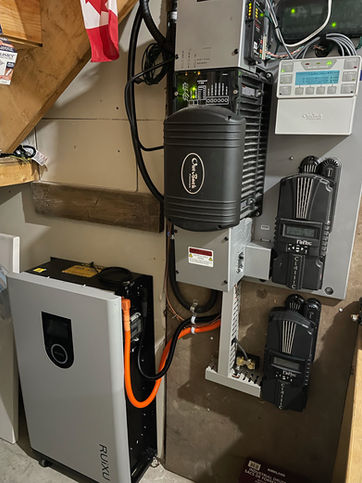

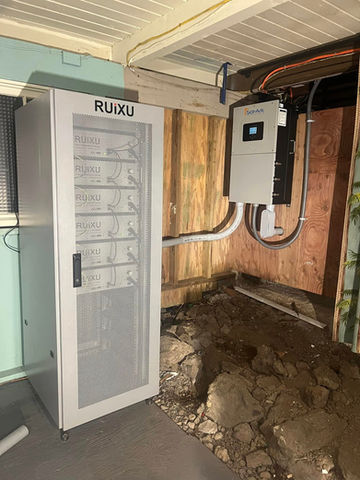

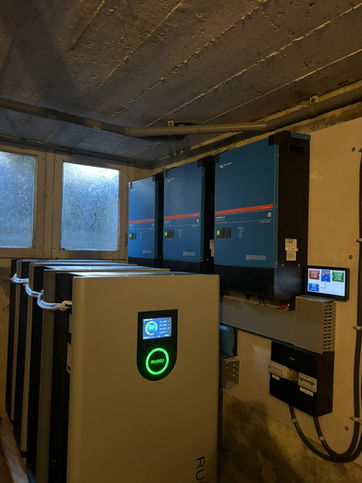

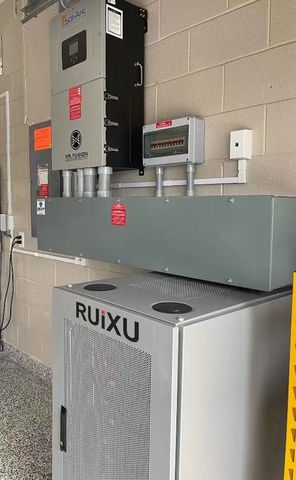

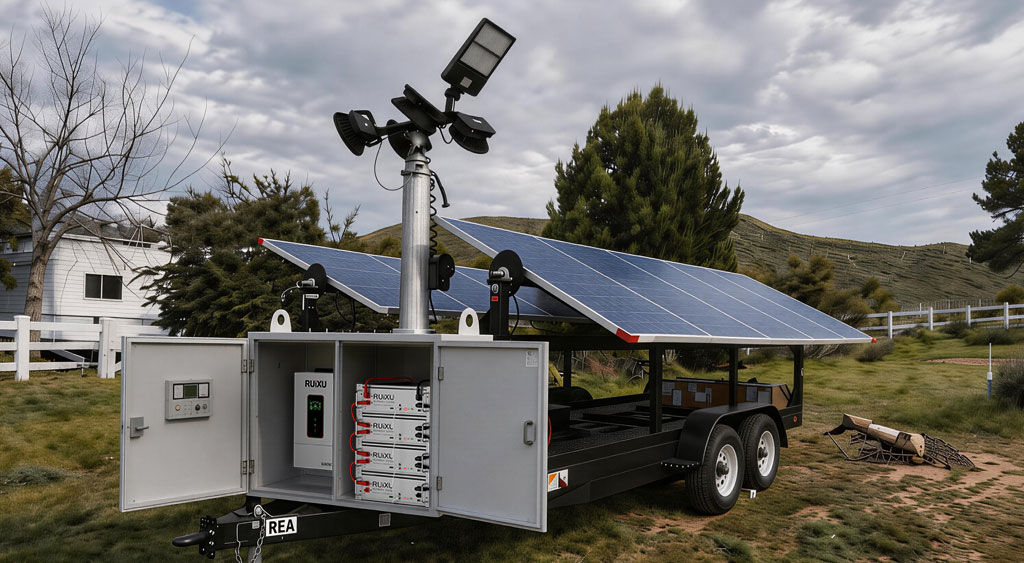

Outdoor Renewable Energy Storage Solutions
Rapid Growth of Golf Cart Project
Easy Installation For Any RV, Marine, Boats






Specifications
Dimensions Length | Dimensions Length 260mm/10.2inch |
---|---|
Dimensions Width | Dimensions Width 200mm/7.8inch |
Dimensions Height | Dimensions Height 190mm/7.4inch |
Weight | Weight 13kg/28.7lbs |
Housing Material | Housing Material Stainless Steel |
Terminal Model | Terminal Model M8 |
Internal Resistance | Internal Resistance ≤20mΩ |
Nominal Voltage | Nominal Voltage 12.8V |
Rated Capacity (0.2C) | Rated Capacity (0.2C) 100Ah |
Efficiency | Efficiency 99% |
Energy | Energy 1280Wh |
Self Discharge | Self Discharge ≤3% Per Month |
Charge Voltage | Charge Voltage 14.4 ± 0.2V |
Maximum Charge Current | Maximum Charge Current 100A |
Charge Cut-off Voltage | Charge Cut-off Voltage 14.6V |
Maximum Continuous Discharge Current | Maximum Continuous Discharge Current 100A |
Discharge Cut-off Voltage | Discharge Cut-off Voltage ≥10V |
Discharge Temperature | Discharge Temperature -4 to 140 ºF (-20 to 60 ºC) |
Charge Temperature | Charge Temperature 32 to 113 ºF (0 to 45 ºC) |
Storage Temperature | Storage Temperature 23 to 95 ºF (-5 to 35 ºC) |
Charge Voltage | Charge Voltage DC:14.4V 3.6/Cell |
Balance Voltage(Single cell) | Balance Voltage(Single cell) 14.4 V (3.6 ±0.025 vpc) |
Balance Current (single cell) | Balance Current (single cell) 36±5mA |
Self-discharge current | Self-discharge current ≤20μA |
Maximum continuous charge current | Maximum continuous charge current 100A |
Peak discharge current | Peak discharge current 200 A (7.5 s ±2.5 s) |
Overcharge detection voltage | Overcharge detection voltage 15.6 V (3.9 ±0.025 vpc) |
Overcharge detection delay time | Overcharge detection delay time 0.5S—2S |
Overcharge release voltage | Overcharge release voltage 15.2 V (3.8 ±0.05 vpc) |
BMS Discharge Voltage Cut-Off | BMS Discharge Voltage Cut-Off 8 V (2.0 ±0.08 vpc) (140 ±60 ms) |
Over-discharge detection delay time | Over-discharge detection delay time 10mS—200mS |
Over-discharge release voltage | Over-discharge release voltage 9.2 V (2.3 ±0.1 vpc) |
Over-current testing voltage | Over-current testing voltage 0.10±0.015V |
BMS Discharge Current Cut-Off | BMS Discharge Current Cut-Off 280 A ±50 A (9 ±4 ms) |
Over-current detection delay time | Over-current detection delay time 5ms—20ms |
Protection release condition | Protection release condition Disconnected load |
Testing | Testing Short-circuit |
Detection delay time | Detection delay time 200-500us |
Release condition | Release condition Disconnected load |
Balance threshold voltage | Balance threshold voltage 14.4V |
Balance current | Balance current 40±5mA |
Protection(MOSFET) | Protection(MOSFET) ≤20mΩ |
Working Temperature | Working Temperature -40~+65℃ |
Storage Temperature | Storage Temperature -40~+125℃ |
